Quality Hot Sale Chemtrol 250 Swimming Pool PH/ORP Controller for Swimming Pool

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

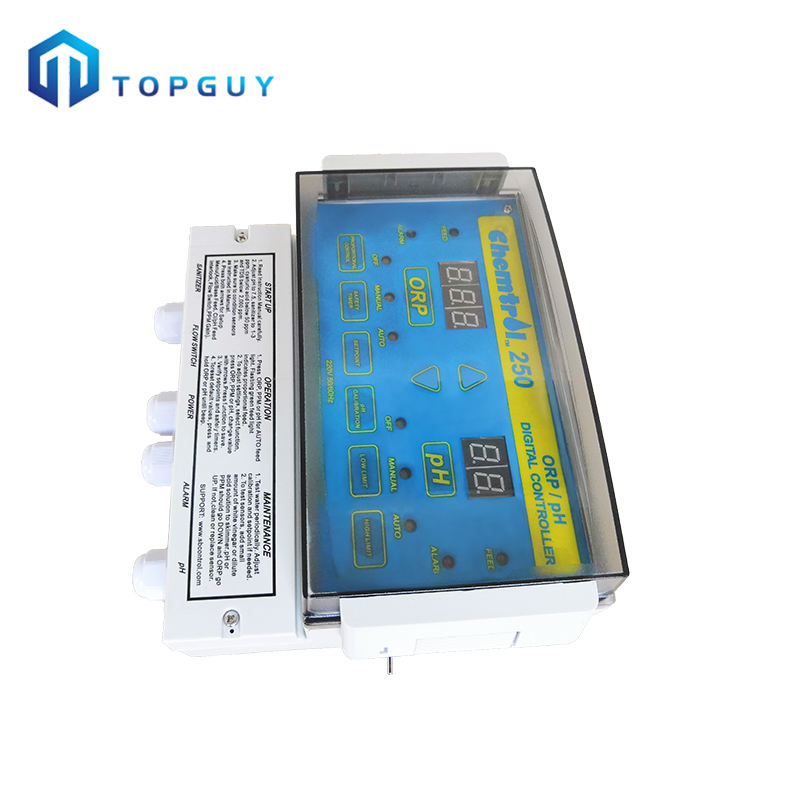

Quality hot sale chemtrol 250 swimming pool PH/ORP controller swimming pool water monitor

_{The ORP/PH digital controller automaticallly
maintainsboth sanitizer ORP(oxidation-reduction potentail or redox) and water Ph in pools and spas .All operating functions are
clearly labeled and accessible from the front panel,with safety and easy -reset features not found on ther controllers.The default
PH control level is 7.0.Below 6.9,the water is too acidic and causes corrosion and eye irritation.Above 7.5,it is tooo alkaline
and causes areirritation plus water cloudiness,scaling ,stains and reduced sanitizer efficiency.The default ORP controller level
is 650mV,values for prevention of germs and bacteria. we can supply many model ,different choice.}

Products Show

Features:

1) ORP control adjustable from 0 to 999 mV
2) PH control adjustable from 1.0 to 14

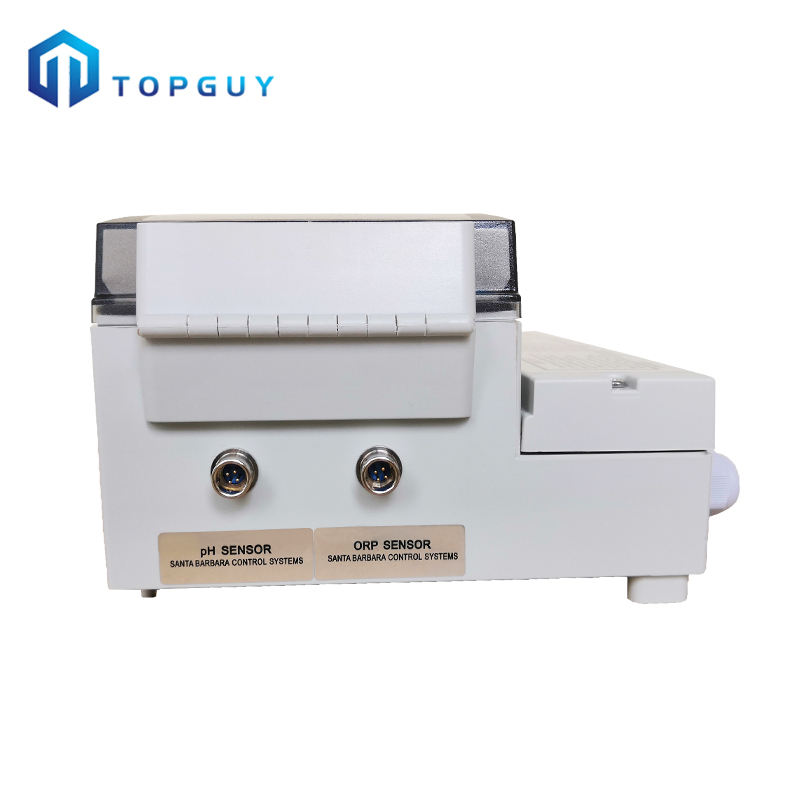

3) ORP sensor Platinum electrode with 4m cable
4) pH sensor Glass electrode with 4m cable
5) Readouts ORP(3 Digits) and pH(2digits) LEDs
6) Feed Modes Manual, Automatic
7) Adjustments Set point, calibration, limits, feed rate
8) Indicators Leds for feed mode, feed status, alarms
9) Safety Audio, visual and remote alarms
10) Cabinet Polystyrene 22x 18x10cm
11) Electrical AC 220V/50Hz
12) Plumbing PVC tees for 1.2’’, 1.5’’, 2’’ line

Recommended option:

1. Controller
Connect controller to timer in parallel with main pump make sure to follow electrical codes
2. Sensors
Install ORP and pH sensors on recirculation line after filter or by pass line
3.Chemical Feeders
Connect chemical feeders to controller outputs. For chlorine or bromine erosion feeder, install solenoid valve on intake line.
Compatible with most ozonator and chlorine salt generators.
